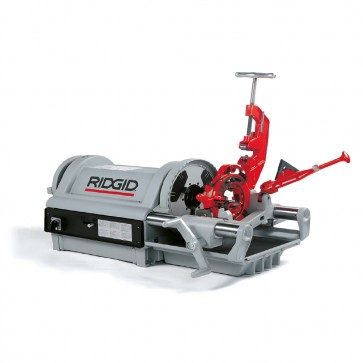

Ridgid 1224 1/2" - 4" Threading Machine 110v (out of stock)

Be the first to review this product

1/2" - 4" THREADING MACHINE 110v
SKU: 26112

Availability: In stock

Excl. VAT: £7,751.00 Incl. VAT: £9,301.20
Ridgid

Product Description

Details

FEATURES The Model 1224 threads a wide range of pipe including black, galvanized and plastic-coated pipe, together with stainless steel, IMC and heavy-wall conduit, as well as rod up to 30 Rockwell C. An induction motor helps minimize noise. A special capacitor-start / capacitor-run motor allows the 1224 to thread a full range of material where voltage drop is experienced. 1/4"-2" Universal Die Head; 2 1/2"-4" receding die head allows cutting of tapered or straight NPT/NPSM or BSPT/BSPP threads. Constant and proper lubrication of dies and workpiece with through-head oiling. SPECIFICATIONS Nominal Pipe Capacity 1/4"-2" (6mm-100mm) @ 36 RPM, 2-1/2"-4" (65mm-100mm) @ 12 RPM, 4"-6" (100mm-150mm) with 161 Geared Threader. Bolt Capacity 1/4"-2" (6mm-50mm). Motor Control Reverse/Off/Forward, heavy-duty rotary-type and integral foot switch. Gear Box Two-speed gear box 3:1 ratio. Chuck Hammer-type with replaceable rocker-action jaw inserts. Rear Centering Device Cam action. Oiling Pump Self-priming, gerotor-type, automatic-reversing, constant-fl ow. Oiling Through die head
